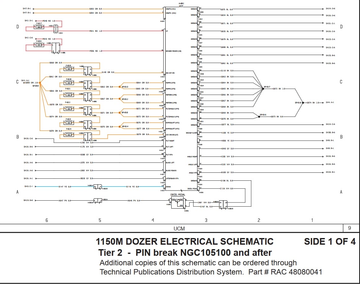

Case Dozer 1150M Tier 2 Electrical Schematic

The Case Dozer 1150M Tier 2 Electrical Schematic is a technical reference for understanding the machine’s electrical system, wiring connections, and circuit layouts. It helps mechanics, technicians, and maintenance professionals identify electrical components, trace wiring paths, and troubleshoot electrical faults. The schematic can assist with inspecting switches, sensors, connectors, and related electrical circuits during maintenance and repair. It supports efficient diagnostics and helps simplify electrical system servicing. Always confirm the machine model and configuration before using the schematic to ensure the wiring information matches your Case 1150M Tier 2 dozer.
